Description

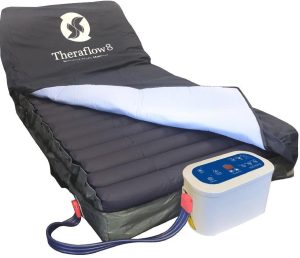

The Theraflow 8 Alternating Mattress represents a quantum leap in active air support. Instead of inflating under the toes first, our Direct Injection technology applies and releases the pressure directly where it is needed the most, under the patient’s high risk sacrum. It’s compact, powerful yet almost silent control unit can quickly support patient loads of up to 200kg whilst alternately allowing pressure to be released across the rest of the body. option which allows for full support and therapy in the upright position!
Features
- 1 in 3 Alternating Mattress Replacement
- Dimensions: 200cm x 90cm x 20cm
- Pumpless mode – quick hose disconnect
- 10 litre super quiet control unit.
- Direct sacral air injection
- 10 Litre super quiet control unit
- Patient SWR: 20-200kg
Specifications
Control Unit:
| Dimensions | W 27 x H 21 x D 10cm |
| Weight | W 27 x H 21 x D 10cm |
| Mode of Operation | Non-Continuous |
| Power Rating | 240V 50Hz 12VA |
| Transport Function | Hose End Cap |
| Air Flow | 250W × 2 pcs brushless motors |
| Auto Startup | ✓ |
| Auto Sensor for Patient Weight Profile and Position | ✓ |
| Comfort Override Control | ✓ |
| Self Diagnostics | ✓ |
| Audible/Visual Alarm | ✓ |
| Mute Function | ✓ |
| Static Mode | Timeout – 60 minutes |
| Care Mode | Timeout – 20 minutes |
| Incline mode with Auto Tilt Sensor | ✓ |
| Auto Anti Tamper – 2-Second Unlock Function | ✓ |
| Weight | 2.5kg |
Mattress Replacement
| Dimensions Standard | L 200 x W 90 x H 21cm |
| Dimensions King Size | L 200 x W 107 x H 21cm |
| Alternating Cell Type | Single Chamber |
| Overall Cell Count | 18 |
| Cell Material | Pure TPU |
| Top Cover | Dahlia Bi-Elastic 2-way stretch – welded |
| Base | Nylon TPU welded |
| Cell Cycle | 1 in 3 |
| Alternating Mode | 10 minutes per alternation |
| Infection Control | Welded Top Cover, Zip, and Base |
| Mattress Attachment | Adjustable Bed Frame Straps |
Hyperstretch Coverlet
| Dimension | L 200 x W 90 x H 1cm |
| Attachment | Top Cover Zip |
| Cover Material | High-Performance Microfibre |
| Foam | Dunlop Marathon Hypersoft HS18-35 with Ultrafresh |
Warranty
| Pump | 2 Years |
| Soft Goods | 2 Years |
