Description

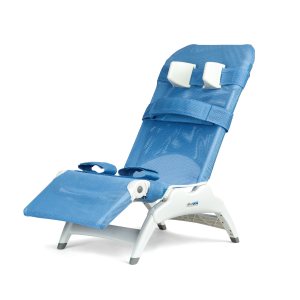

The Rifton wave makes bathing easy for the user and their caregiver. With its high adjustability backrest angle ranging from 0° to 75° inclining in 15° increments the user can lay flat. The Wave offers the user to move from a size small to a medium size with a conversion kit allowing the chair to grow with the user.
NovitaTech recommends a clinical assessment prior to purchase.
Features:
- Compact fold up ability for transportation and storage
- Available in 3 sizes
- Offers full leg support
- One-hand adjustment
- Optional accessories
- 3 optional bases including a tub stand base, shower stand base and tub transfer base
- 2 choices of chest strap
- Available in colours pink and blue
Specifications:
| SMALL | MEDIUM | LARGE | ||||
|---|---|---|---|---|---|---|
| DIMENSIONS | CM | INCHES | CM | INCHES | CM | INCHES |
| Seat Depth | 26.7 | 10½ | 33 | 13 | 43 | 17 |
| Seat Width | 38 | 15 | 38 | 15 | 44.45 | 17½ |
| Back Height | 58 | 23 | 67 | 26½ | 81 | 32 |
| Seat Height | 5-18 | 2-7 | 5-18 | 2-7 | 5-18 | 2-7 |
| Seat Height (incl. bath stand) | 31.7-47 | 12½-18½ | 31.7-47 | 12½-18½ | 31.7-47 | 12½-18½ |
| Seat Height (incl. shower stand) | 69.85 | 27½ | 69.85 | 27½ | 69.85 | 27½ |
| Seat Height (incl. transfer base) | 55-70 | 21½-27½ | 55-70 | 21½-27½ | 55-70 | 21½-27½ |
| Length of Mesh Area when Flat (without calf rest) | 89 | 35 | 104.2 | 41 | 128 | 50½ |
| Length of Mesh Area when Flat (with calf rest) | 108 | 42½ | 124.5 | 49 | 155 | 61 |
| Width of Base | 46 | 18 | 46 | 18 | 53 | 21 |
| Length of Base when flat | 75 | 29½ | 75 | 29½ | 75 | 29½ |
| Bath Stand Height (legs flat) | 20 | 8 | 20 | 8 | 20 | 8 |
| Bath Stand Length (legs flat) | 99 | 39 | 99 | 39 | 99 | 39 |
| Bath Stand Width (legs flat) | 44.5 | 17½ | 44.5 | 17½ | 44.5 | 17½ |
| Shower Stand Height | 56 | 22 | 56 | 22 | 56 | 22 |
| Shower Stand Width | 69 | 27 | 69 | 27 | 69 | 27 |
| Shower Stand Length | 86 | 34 | 86 | 34 | 86 | 34 |
| Maximum Tub Edge Height (for transfer base) | 48 | 19 | 48 | 19 | 48 | 19 |
| User Height Range | 91-117cm | 102-142cm | 127-188cm | |||
| Maximum Working Load | 34kg (75lbs) | 68kg (150lbs) | 114kg (250 lbs) | |||
| Back & Seat Angle Adjustments | 0°, 15°, 30°, 45°, 60°, 75° | |||||
